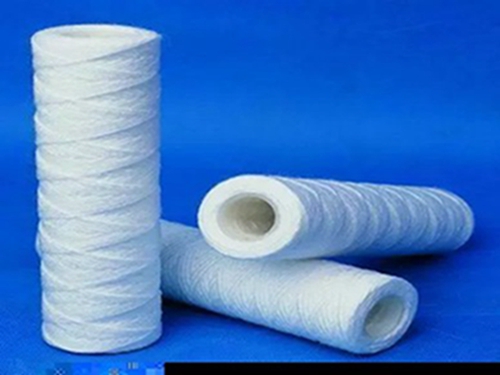

Filter cotton core is a deep filter element, is used for the quality of low viscosity, low noise filter, is made of textile fiber line (polypropylene line, degreased cotton thread, etc.), according to the specific process of precision winding in the porous skeleton (polypropylene and stainless steel) made above, with thin dense honeycomb structure, can effectively remove the suspended solids in the fluid, particles, rust and other sundry, It has very good filtering characteristics.
Main performance:
1. High filtration accuracy, small pressure difference, large flow, large sewage capacity, long service life;
2. The filter aperture is small inside and large outside, with good deep filtration effect;
3. The filter element is made of different materials to ensure the requirements of various liquid filtration and achieve the best filtration effect.
Product application field:
1. Filtered water: such as medium and large ultrapure water system pre-filtration treatment, beverage industry water pre-filtration treatment;
2, food industry filtration: such as cooking oil, vegetable oil filtration, syrup, chocolate and other kinds of slurry filtration;
3, chemical industry filtration: such as electroplating liquid filtration, paint, oil, coating filtration, mechanical oil, cutting oil, heavy oil, fuel oil filtration, high viscosity resin, oil filtration, pharmaceutical filtration
Main technical performance indicators:
1, filtration accuracy :1μm,5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm;
2, filter outer diameter :φ60mm, φ65mm;
3, filter inner diameter :φ28mm, φ30mm;
4, polypropylene wire wound filter element can be hydroacid and alkali, chemical solutions and other non-organic solutions, the use of temperature is less than 60℃
5. The center rod of the absorbent cotton fiber filter is made of stainless steel, which is used for organic solvents, water, oil, alkaline solutions, beverages, medicine, etc., and the temperature is 120℃.
6, filter length :10 ", 20 ", 30 ", 40"
7, the highest pressure :≤ 0.5mpa; Maximum pressure drop: 0.2mpa.
8, the highest working temperature: polypropylene line: polypropylene skeleton ≤60℃; Stainless steel skeleton ≤80℃. Degreased cotton thread: stainless steel frame ≤120℃.
